Description:
1. Simple & easy access to sinus cavity • Broad exposure of bony walls with special instruments
2. DASK is an advanced sinus lifting kit. The drills are internally irrigated, designed to create hydraulic pressure that protects the sinus membrane when drilling.

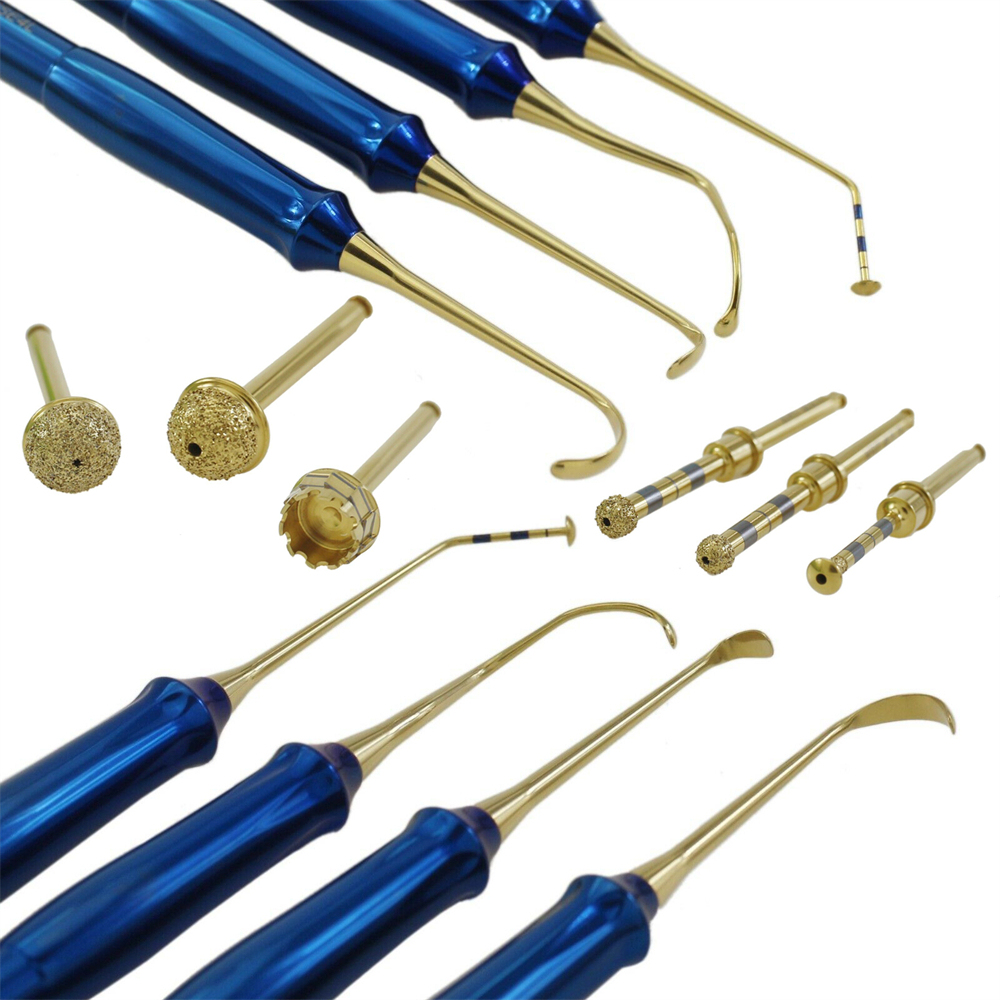

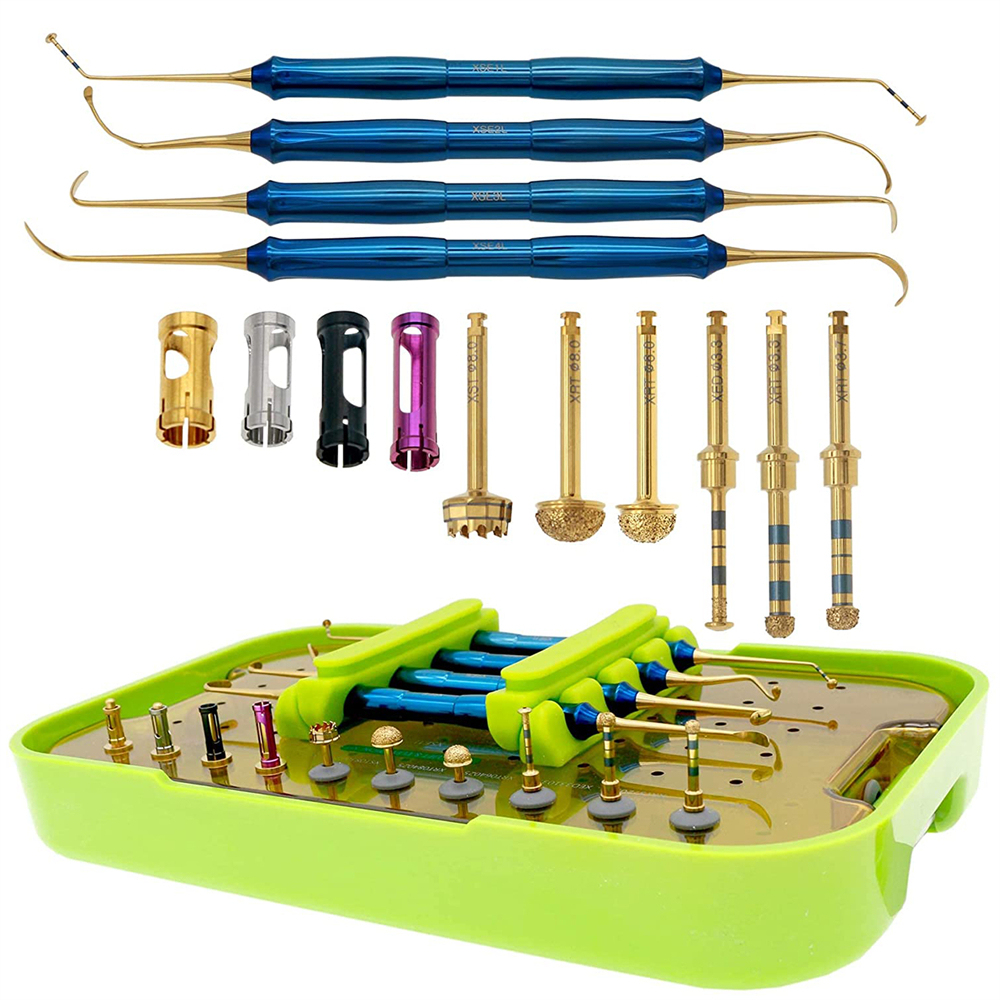

3. The DASK kit contains 3 drills for the lateral approach, 3 drills for the crystal approach, 4 drill stoppers and 4 sinus hand instruments.
4. The drills are internally irrigated to create an umbrella effect to reduce the risk of a potential perforation to the sinus.

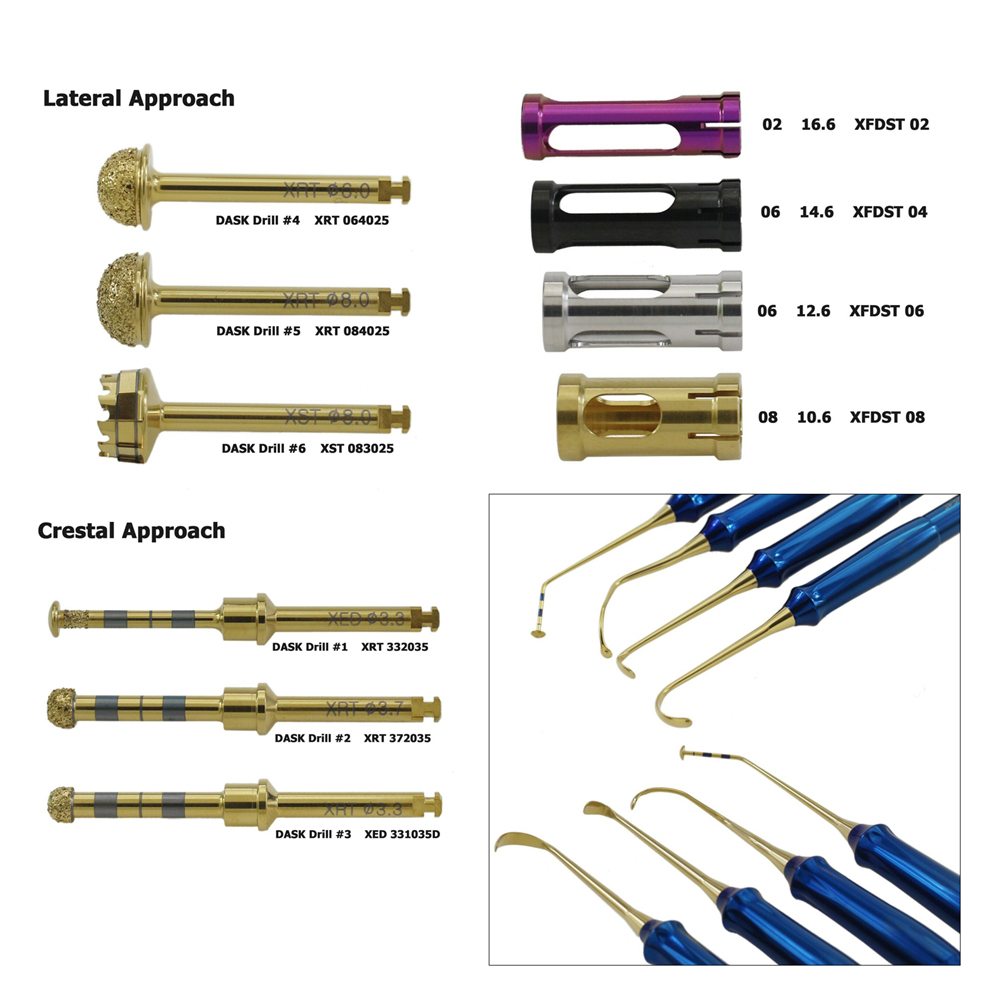

• Crestal Approac
DASK Drill #1 XRT 332035
DASK Drill #2 XRT 372035
DASK Drill #3 XED 331035D
• Lateral Approach
DASK Drill #4 XRT 064025
DASK Drill #5 XRT 084025
DASK Drill #6 XST 083025
* DASK Drill #1~5 : Drill speed 800 to 1,200 rpm, 30~45Ncm with internal irrigation
DASK Drill #6 : Drill speed 800 to 1,200 rpm, 30~45Ncm with external irrigation
Stopper For XRT332035, XRT372035, XED331035D
Drilling DepthLArt.No.
08 10.6 XFDST 08
06 12.6 XFDST 06
06 14.6 XFDST 04
02 16.6 XFDST 02
Sinus Elevation Instrument
Art. NO
XSE1L
XSE2L
XSE3L
XSE4L
