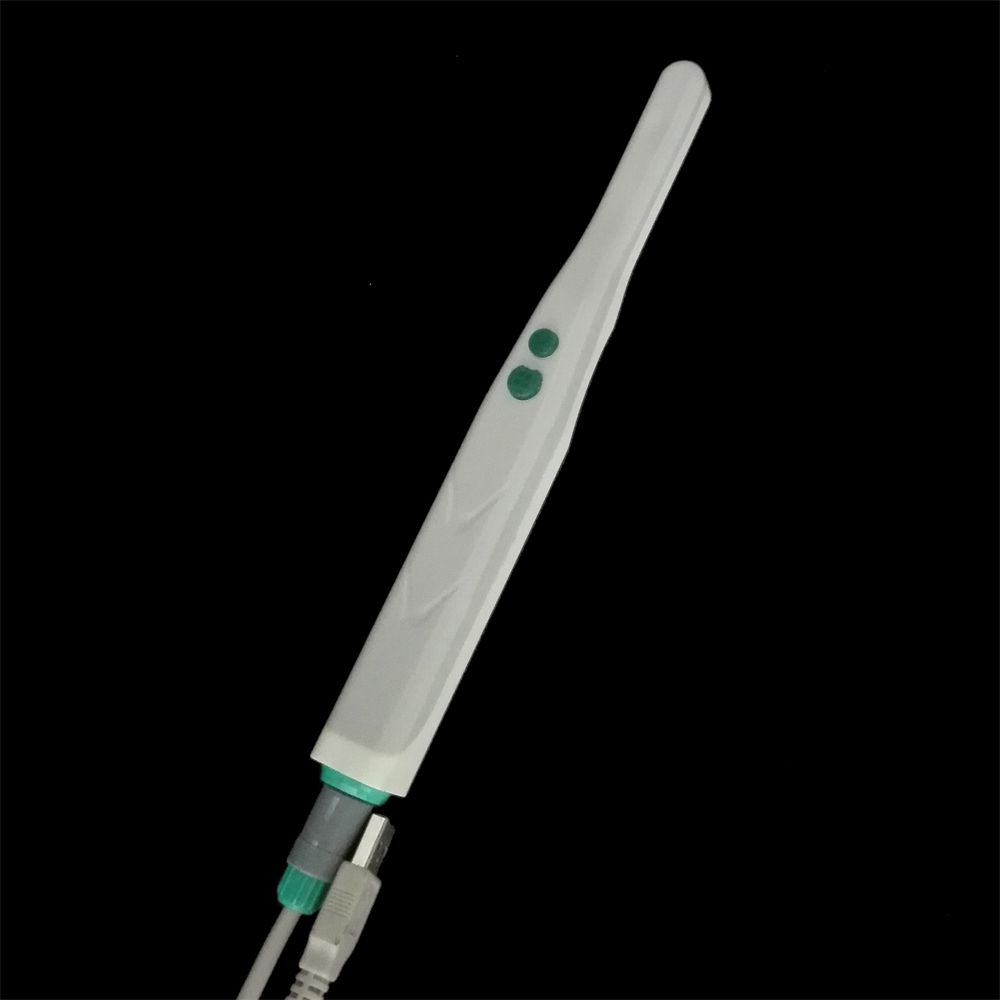

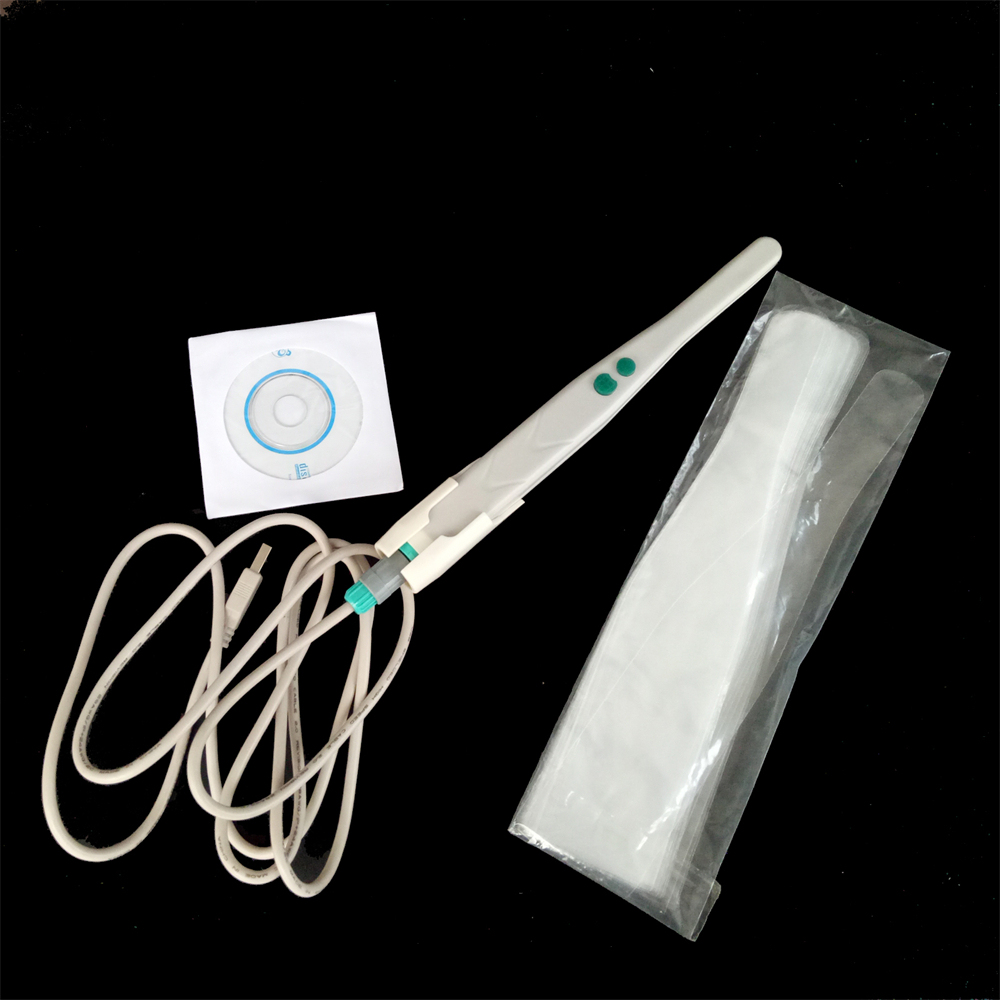

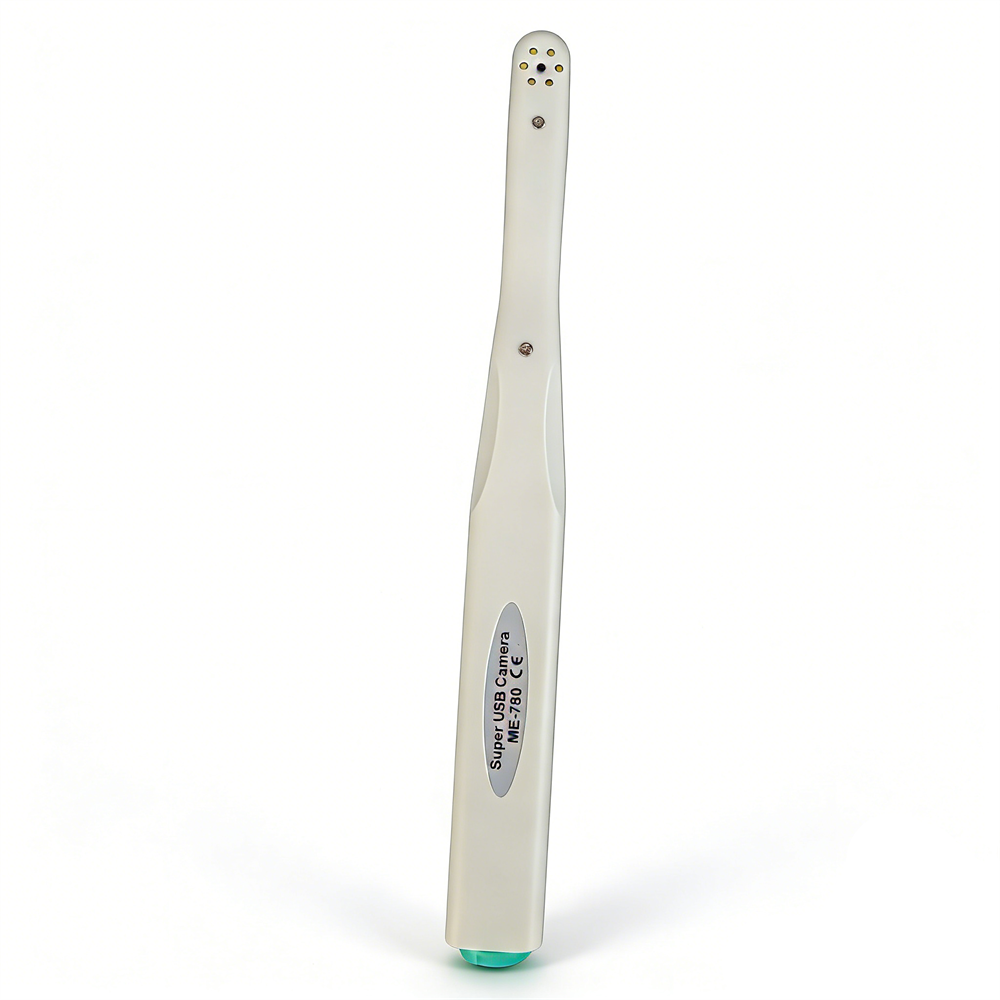

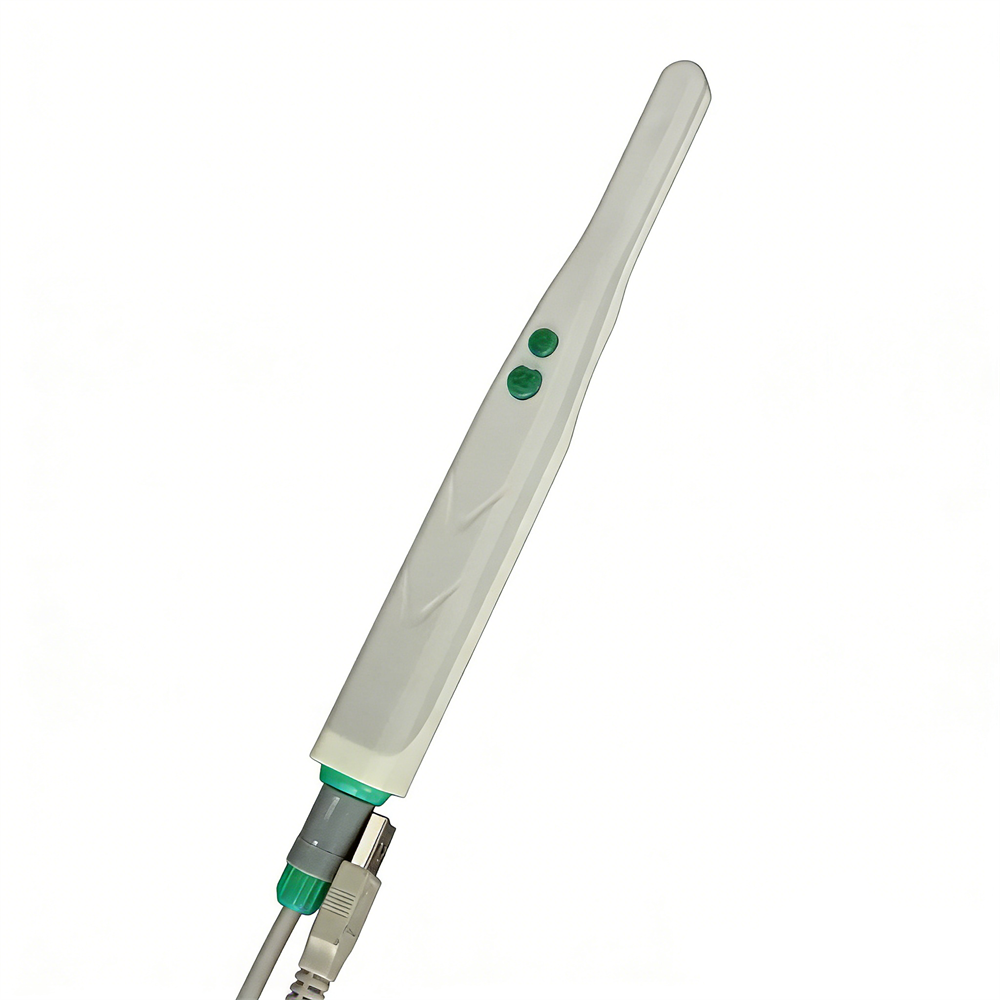

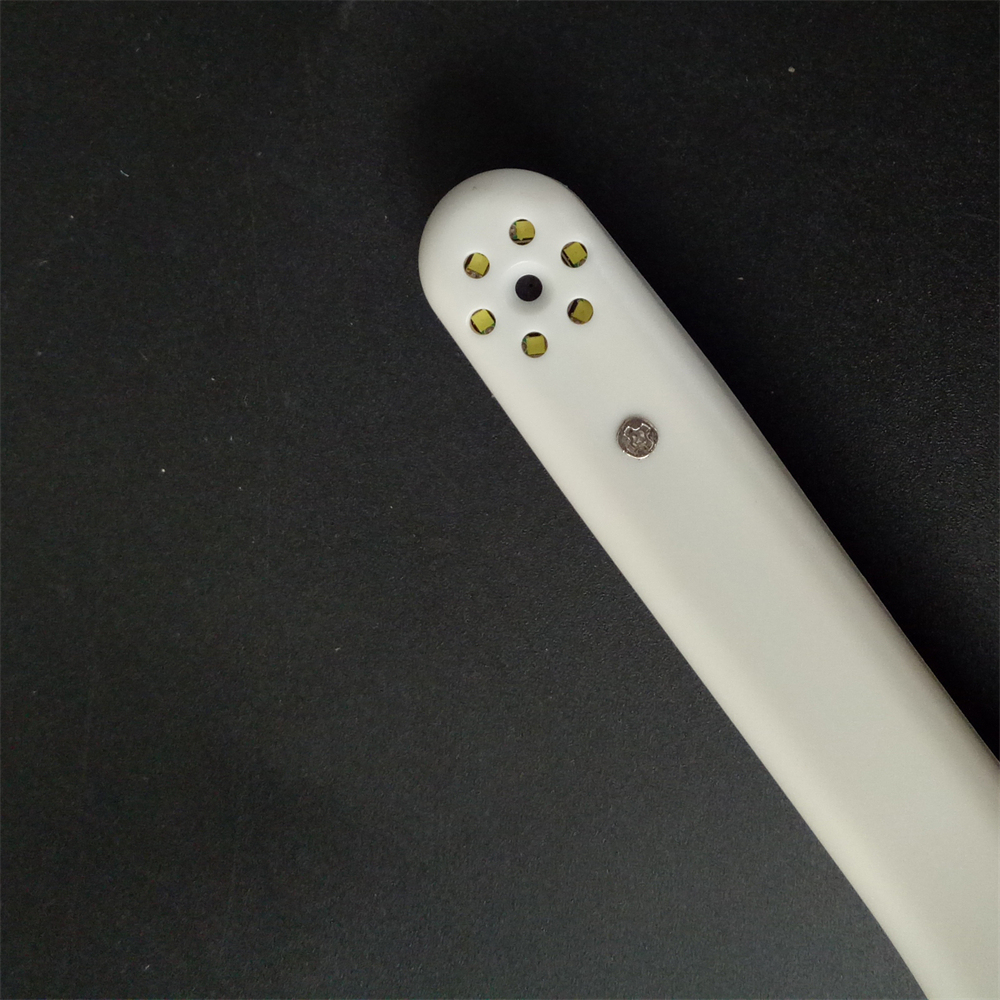

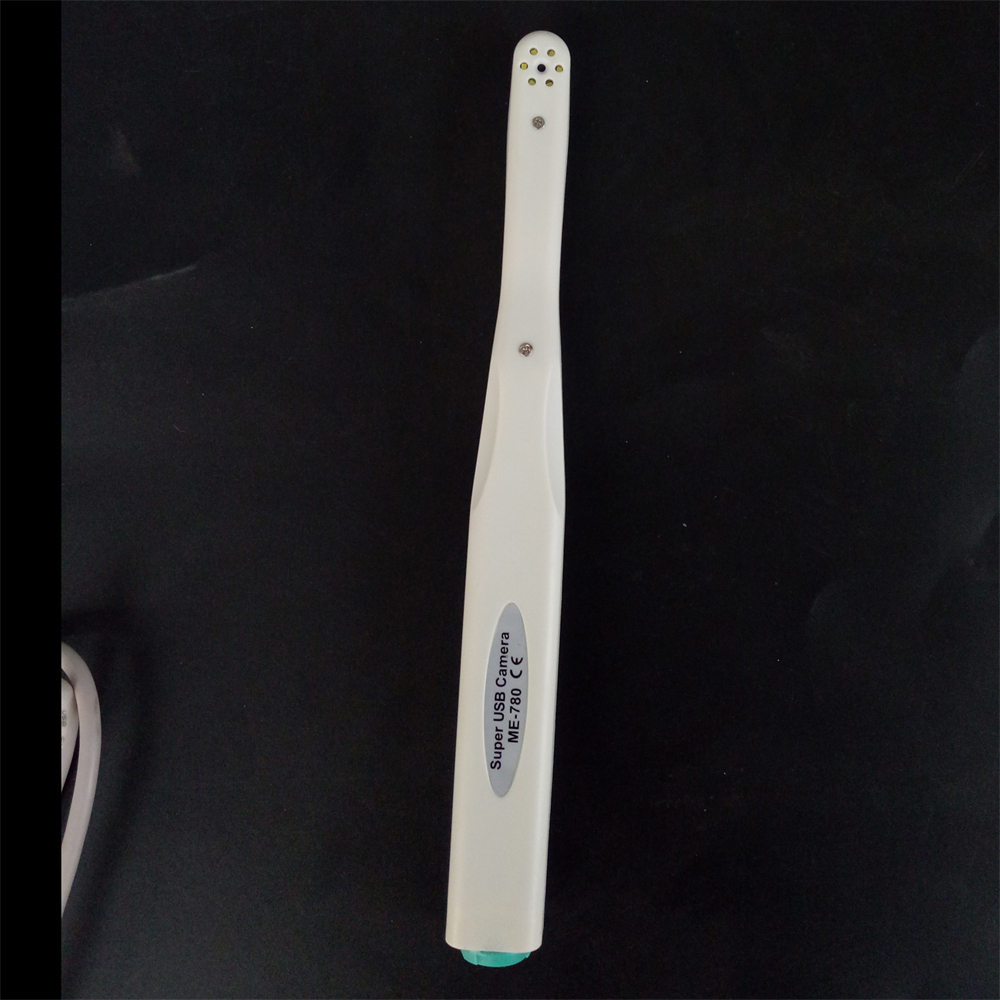

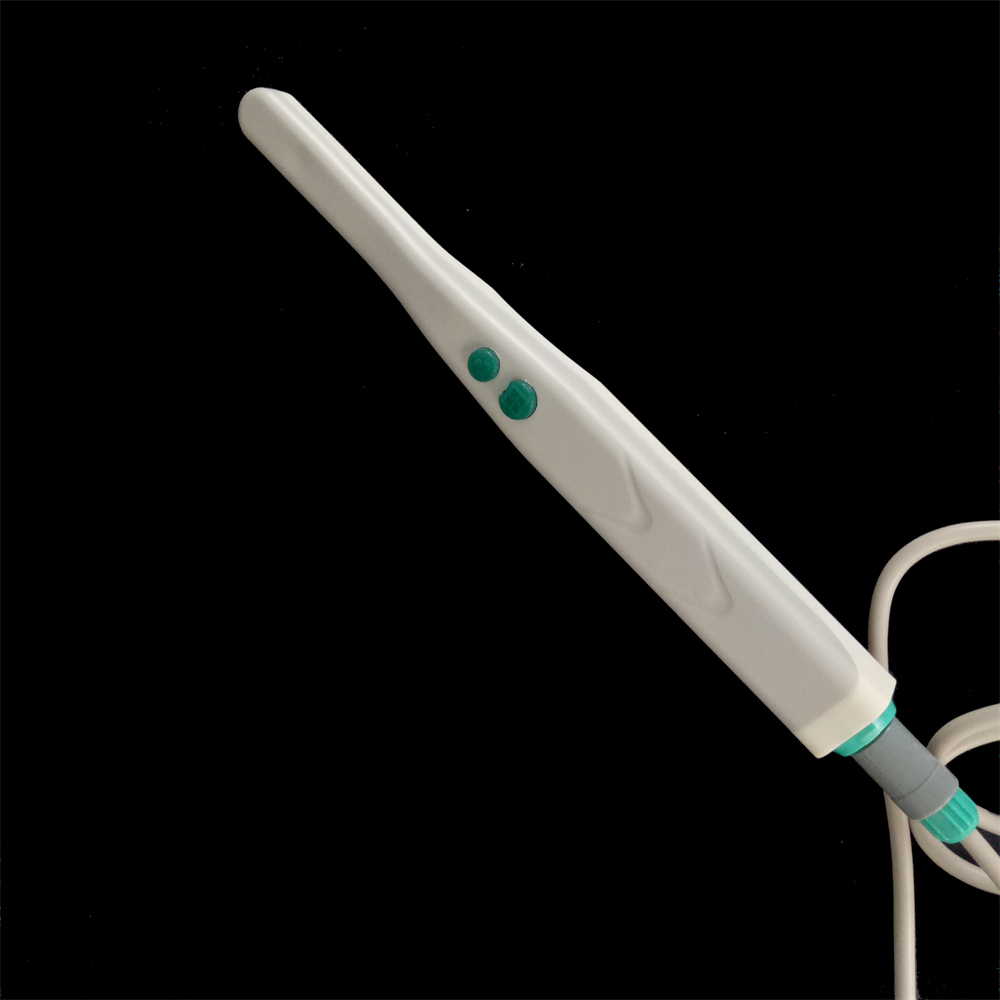

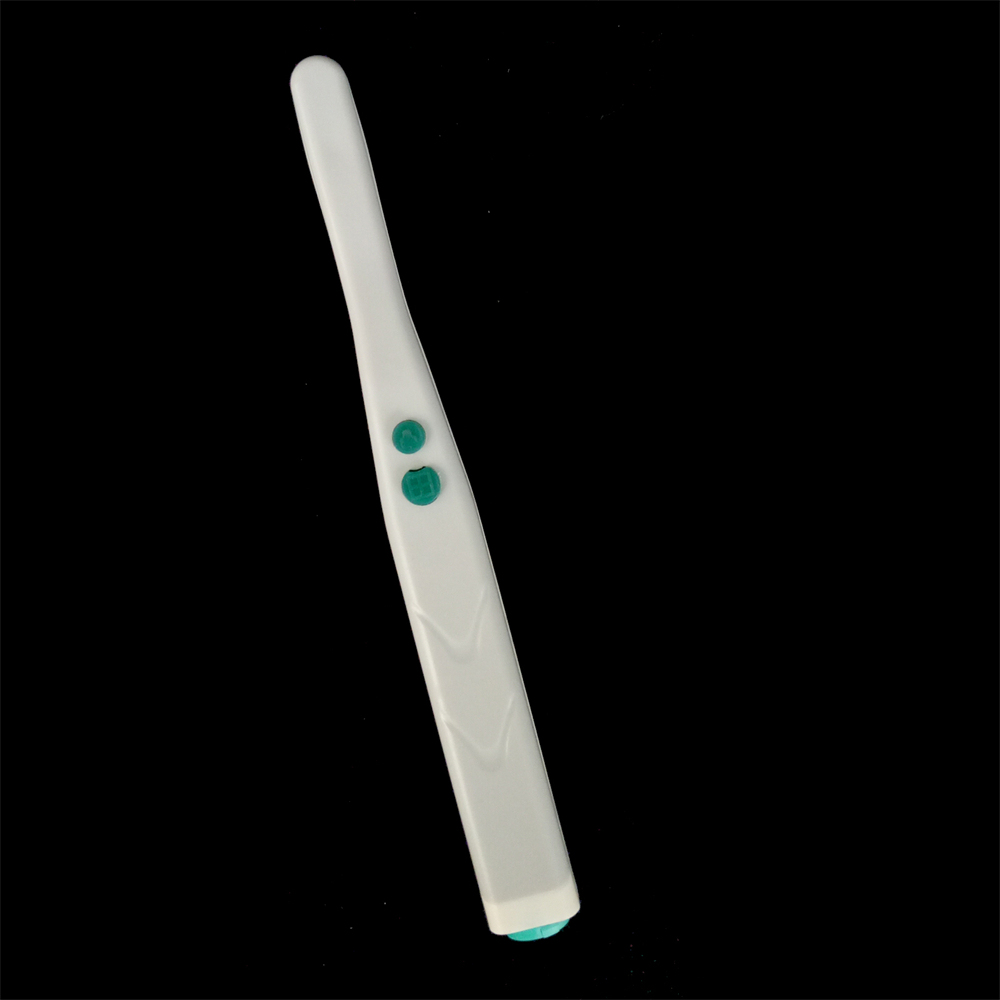

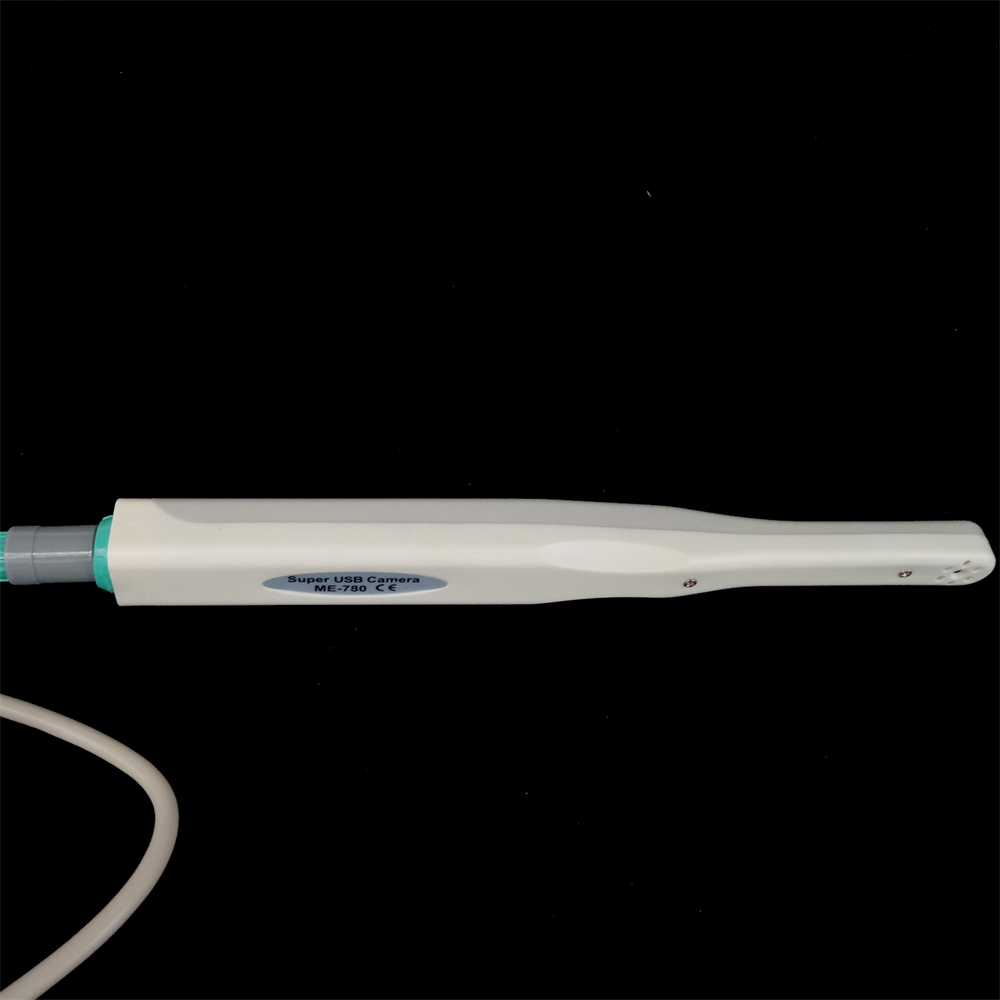

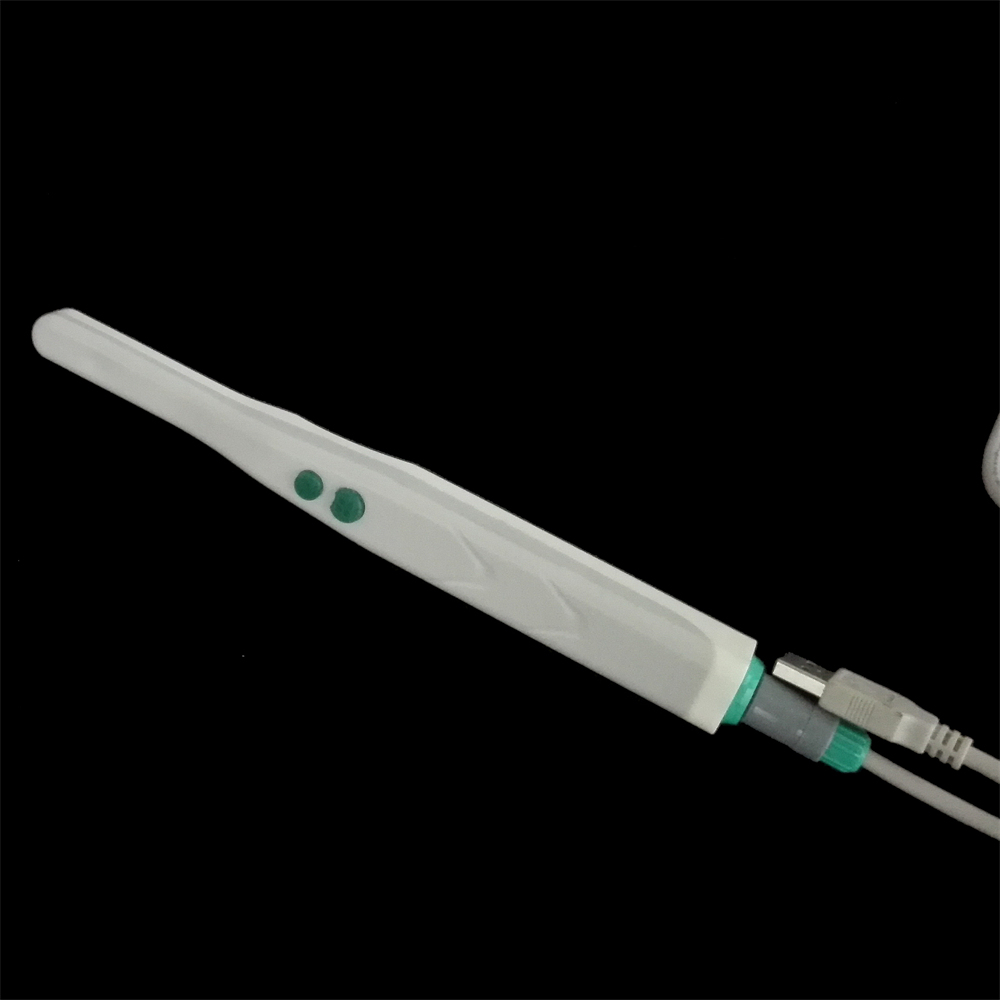

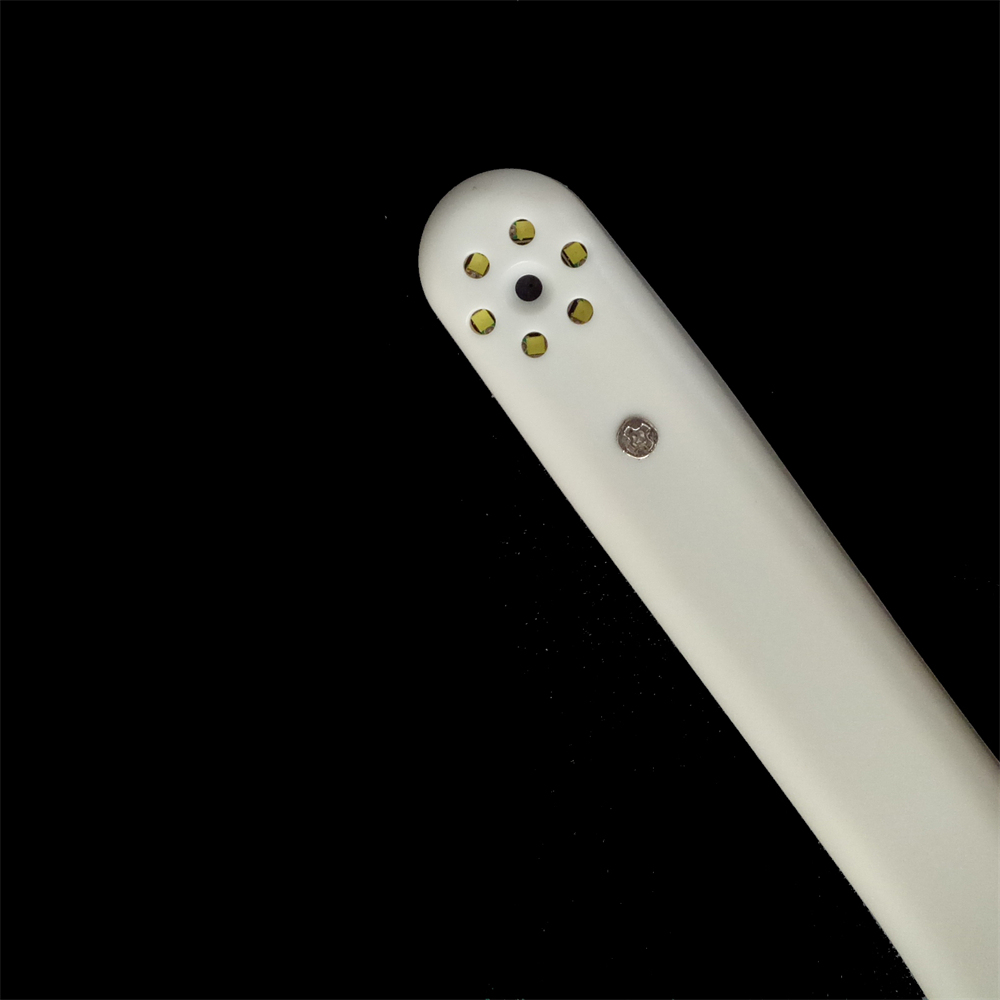

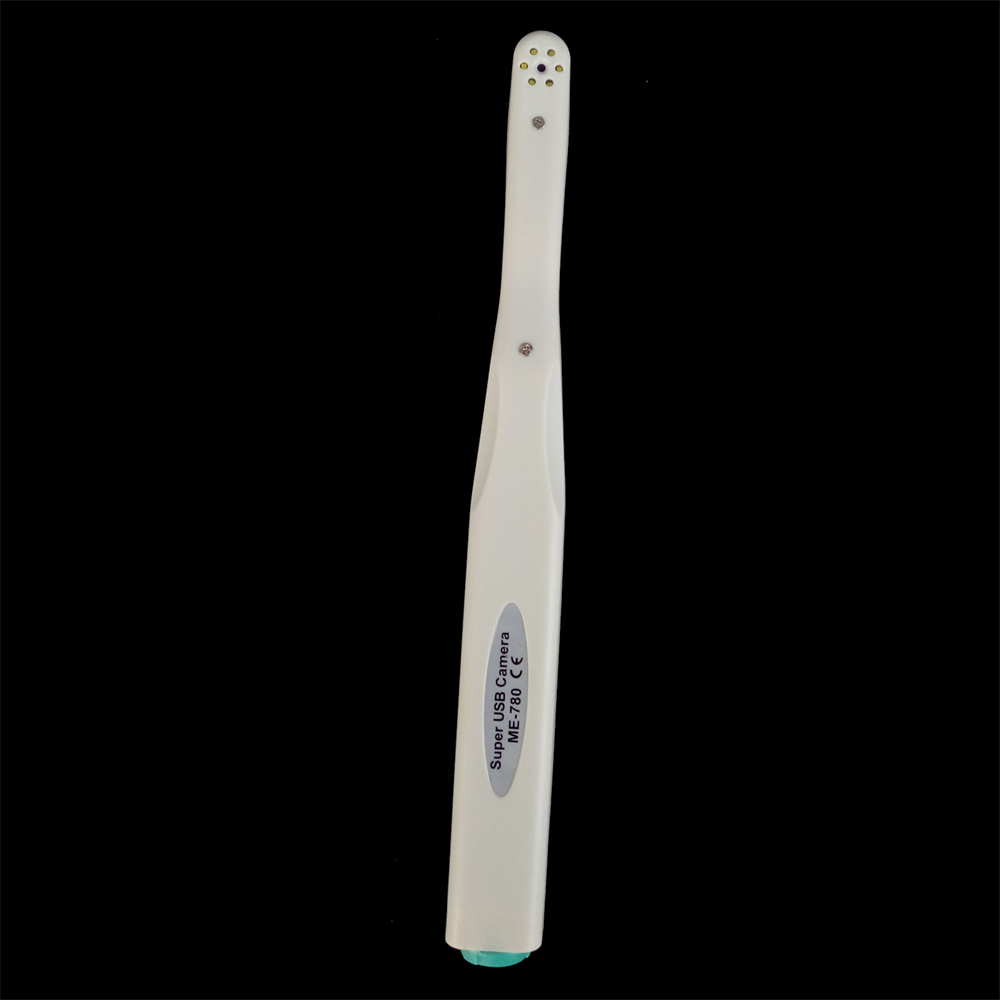

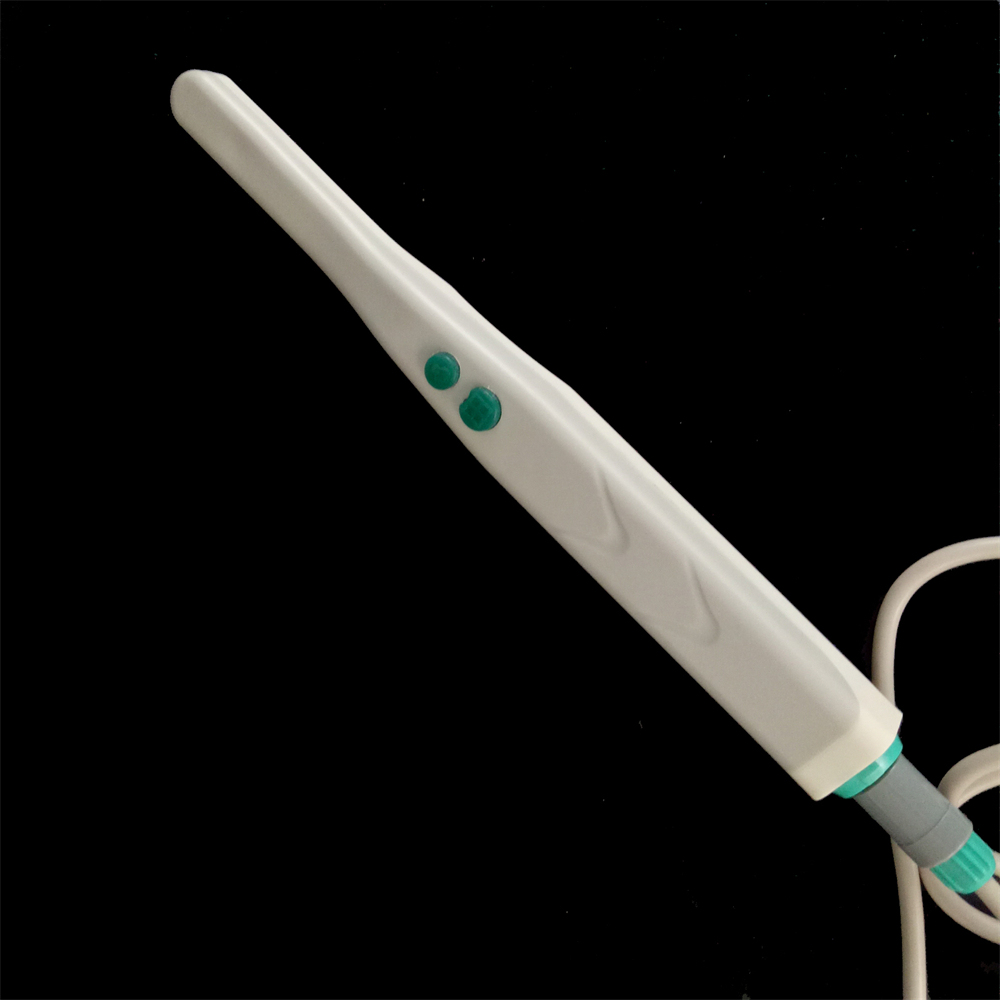

Super USB Camera ME-7801.Specifications :Image:1/4 inch CMOSEffective Pixel layout :640*480,1600*1200,2048*1536,2272*1074Video output :USB2.0 compliant full motion digitalfous range :5mm-30mmilluminate :6LEDExternal power supply :onehnadpiece weight :40gOperation system :windows 2000/XP/VISTA/Win72 System RequirementsCPU Pentium :4.2GHz or higherOperating system Windows xp professional for an intel 32-bit processorwith service pack 2 and KB 822603 update or later ,direct X9 or laterRAM 265MCD ROM Drive 24X Speedmonitor SVGA 17" .800*600 or higher resolution or highervideo display asapter 16M video cardsupporting 800*600 pixels with 32-bit colorstandard keyboard and mouseUSB port must be USB 2.0 high speed ,high power port3.USB cam sketch MapDescriptionindicator light :light on means handpiece have connected to computerfreeze button :freeze capture imagepower on/off buttoon :control LED light ,when not using ,please turn off.Avoiding the handpiece too hot to prolong its lifetime.camera lens and light source :professional optical glass len and 6 light illuminationg LEDSCamera golder :For supporting the handpiece .When taking the teeth picture,you may feel that the picture is little bright,You can adjust the brightness.Doubel click "Device Setting",youc an adjust Brightness in video proc amp ,our reference brightness value is 105.Different monitor ,different brightness.
