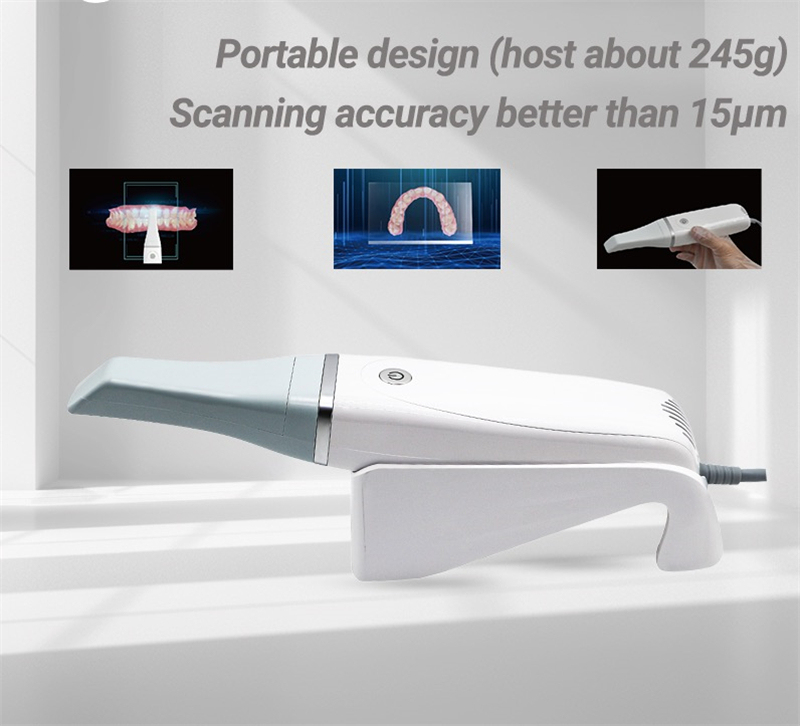

1.1 Name of Product: Intraoral Scanner
1.2 Safety classification: Type of electric shock protection: Class II; degree of electric
shock protection: Type B
1.3 Date of manufacture: See the label.
2.Main performance indicators
2.1 Main dimensions
Intraoral length: 93 mm
Size of scanner tip of Intraoral Scanner:
Scanner Tip: 93×20×17.5 mm;
Small scanner tip: 93×17×14 mm.
Overall dimensions of Intraoral Scanner (length × width × height):
Assembly scanner tip: 237× 46× 39 mm.
2.2 Technical parameters
(1)
Precision
Repair precision:
Scanner tip precision: ≤15 μm;
Smallscanner tip precision: ≤15 μm.
Orthodontic precision:
Scanner tip precision: ≤100 μm;
Smallscanner tip precision: ≤100 μm.
(2)
Field of view size
Scanner Tip: ≥13 mm×15 mm;
Smallscanner tip: ≥11 mm×9 mm.
(3)
Depth of field:
Depth of field of scanner tip: ≥15 mm;
Depth of field ofsmall scanner tip: ≥15 mm.
3.Product functions and intended uses
3.1 Product function
This Series Intraoral Scanner is an optical scanner system designed to obtain the three-
dimensional digital information of tooth shape features directly from the patient's oral cavity
or dental impression. It is intended to be used for medical institutions to design and
manufacture implants for dental indications as well as orthodontics, etc.
3.2 Intended useThe product is supposed to obtain the digital impressions of soft and hard tissue
surfaces such as teeth, gums and mucous membranes by intraoral scanning for
prosthodontic and orthodontic uses.
